We provide complete customization services to ensure your graphic LCD modules perfectly match your application requirements.
1. Resolution Customization: From 128×64 to 320×240, and from small 16×2 displays to large 5.7-inch graphic LCD modules, we offer a full range of resolution options.
2. IC Customization: Different applications require different ICs. We offer options such as ST7920, AIP31108, LC798, RA8835, and more, supporting various language fonts.
3. Backlight Customization: Choose from a wide variety of backlight options, including black background, blue, gray, yellow-green, red, amber, orange, and more.
4. Custom Pin Assignments: Assign functions to each pin on your graphic LCD module to ensure immediate compatibility with your existing development board.
| Drawing | Graphic | Model Number | Outline Dimension(mm) | Viewing Area(mm) | IC | Pin number | Remark(Backlight) |
|---|---|---|---|---|---|---|---|
| 122x32 | HSM12232A | 68.6x27.5x7.4 | 61x18 | SBN1661 | 18 | Side BL | |
| 122x32 | HSM12232D | 74x40x8.6 | 60x18 | ST7920 | 9 | with Chinese Fonts | |
| 122x32 | HSM12232G | 80x36x12.8 | 60x18 | SBN1661 | 18 | Side BL | |
| 122x32 | HSM12232J | 66.3x27.5x8.5 | 54.8x18.3 | ST7920 | 8 | with Chinese Fonts | |
| HSM12232M.pdf | 122x32 | HSM12232M | 59x29.3x5.55 | 52x15 | AIP31250 | 16 | Side BL |
| 128x32 | HSM12832A | 84x44x14.1 | 70x20 | ST7920 | 18 | Side BL | |
| 128x32 | HSM12832B | 110x65x13.5 | 75.9x25.1 | AIP31108 | 18 | Side BL | |
| HSM12832C.pdf | 128x32 | HSM12832C | 80x36x12.8 | 60x18 | ST7920 | 20 | Side BL |
| 128x64 | HSM12864A | 113x65x12.9 | 73.4x38.8 | AIP31108 | 20 | Side BL | |
| HSM12864C.pdf | 128x64 | HSM12864C | 78x70x12 | 62x44 | AIP31108 | 20 | Side BL |
| 128x64 | HSM12864E | 73.2x60x9.3 | 62x40 | AIP31108 | 20 | Side BL | |
| HSM12864G.pdf | 128x64 | HSM12864G | 63.2x52.2x11.5 | 54x36 | AIP31108 | 20 | Side BL |
| 128x64 | HSM12864H | 103.8x52x9.3 | 72.5x39.5 | AIP31108 | 20 | Side BL | |

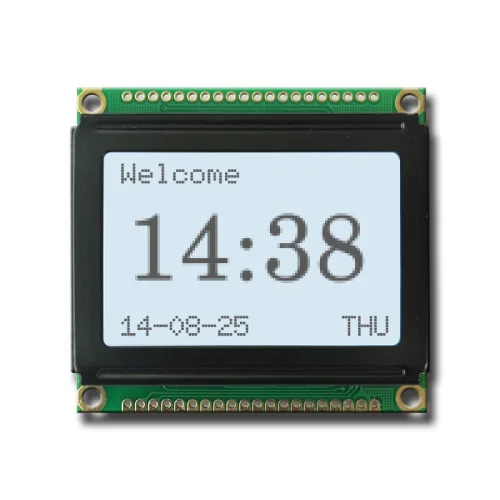

| 128x64 | HSM12864I | 54x50x7.7 | 43.5x28.8 | AIP31108 | 20 | Side BL | |
| 128x64 | HSM12864J-1 | 93x70x13.5 | 70.7x38.8 | AIP31108 | 20 | Side BL | |
| HSM12864K.pdf | 128x64 | HSM12864K | 93x70x13.5 | 72x39 | T6963C | 20 | Side BL |
| HSM12864L.pdf | 128x64 | HSM12864L | 88x46x8.9 | 60x32.6 | AIP31108 | 20 | Side BL |
| HSM12864M-3.pdf | 128x64 | HSM12864M-3 | 93x70x12.5 | 72x39 | ST7920 | 20 | with Chinese Fonts |
| HSM12864S.pdf | 128x64 | HSM12864S | 78x70x12.3 | 62x44 | ST7920 | 20 | with Chinese Fonts |

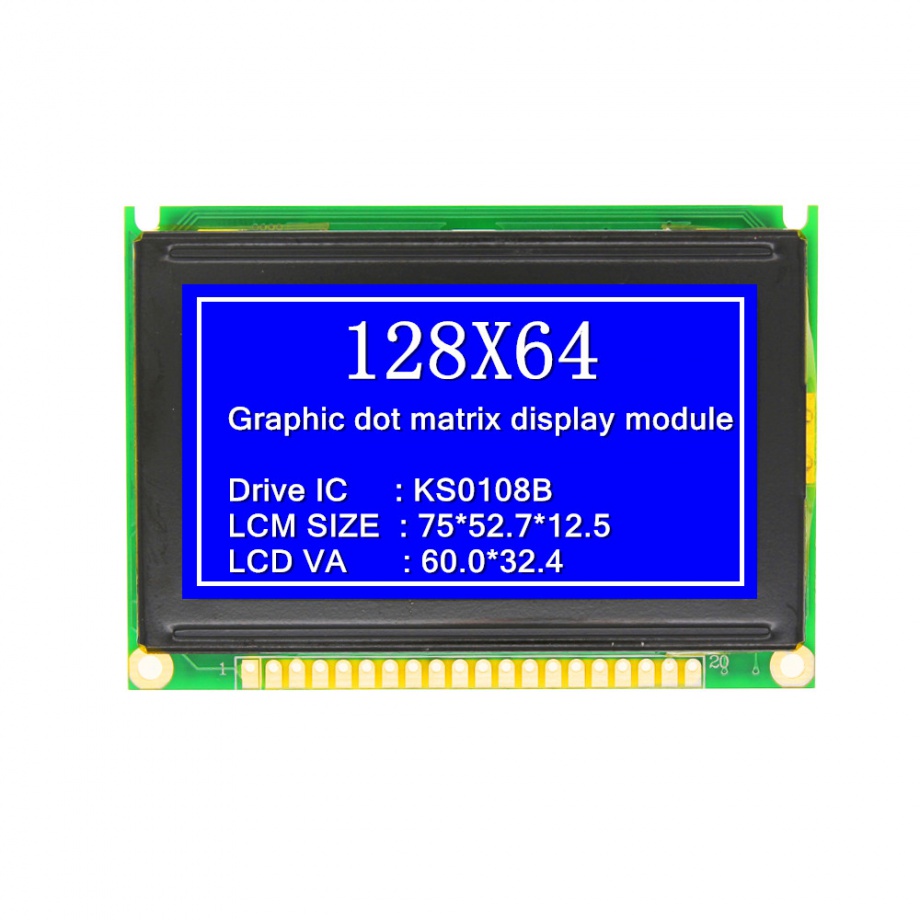

| HSM12864A-24.pdf | 128x64 | HSM12864A-24 | 75x52.7x9.5 | 60x32.6 | AIP31108 | 20 | Side BL |
| 128x128 | HSM128128B | 72.4x70x14.5 | 73x73 | LC7981 | 20 | Side BL | |
| HSM19264A-1.pdf | 192x64 | HSM19264A-1 | 130x65x12.8 | 104x39 | AIP31108 | 20 | Side BL |
| HSM19264B-1.pdf | 192x64 | HSM19264B | 120x62x12.5 | 100x37 | AIP31108 | 20 | Side BL |
| 192x64 | HSM19264C | 130x53x12.8 | 104x39 | AIP31108 | 20 | Side BL | |
| HSM19264T.pdf | 192x64 | HSM19264T | 100x60x11.3 | 84x31 | AIP31108 | 20 | Side BL |
| HSM19264M.pdf | 192x64 | HSM19264M | 130x65x12.8 | 104x39 | ST7920 | 19 | with Chinese Fonts |
| HSM16032A.pdf | 160x32 | HSM16032A | 116x44x9.5 | 99x24 | AIP31108 | 20 | Side BL |
| HSM16032B.pdf | 160x32 | HSM16032B | 122x44x13.2 | 99x24 | ST7920 | 20 | with Chinese Fonts |
| HSM16032D.pdf | 160x32 | HSM16032D | 116x35x11.8 | 83x18.5 | ST7920 | 20 | with Chinese Fonts |
| 160x64 | HSM16064A | 98x60x14 | 77x26 | ST7920 | 20 | with Chinese Fonts | |
| 160x128 | HSM160128A | 129x102x11.8 | 101x82 | T6963C | 22 | Side BL,Bonding IC | |
| 240x64 | HSM24064B | 180x65x14.5 | 132x39 | T6963C | 22 | Side BL | |
| HSM240128B-1.pdf | 240x128 | HSM240128B-1 | 144x104x12 | 114x64 | T6963C | 21/22 | Bonding IC |
| HSM320240B.pdf | 320x240 | HSM320240B(5.7") | 160x109x13.5 | 121x93 | RA8835 | 20 | |
| HSM320240C.pdf | 320x240 | HSM320240C(5.1") | 139x100x12.5 | 103x79 | RA8835 | 20 | SMT IC |
