| Drawing | Dot matrix | Model Number | Outline Dimension(mm) | Viewing Area | IC | Pin Number | Remark(Backlight) |
|---|---|---|---|---|---|---|---|
| 16x2 | HSG1602-39 | 56.5x25.8x5 | 65.1x14.8 | SPLC792A-002A | 12 | No BL | |
| 16x2 | HSG1602-86 | 80x42x5.8 | 65x26 | ST7032-0D | 12 | White BL | |
| 20x2 | HSG2002-00 | 69.5x25.05x11.4 | 61x15.1 | NT7605 | 14 | No BL | |
| 20x4 | HFG2004-01 | 74.3x36.4x6 | 60.5x22.18 | SSD1803AM1Z | 13 | White BL | |
| 64x48 | HFG6448-05 | 18.46x18.1x1.8 | 15.42x11.66 | AIP31567A | 21 | White BL | |
| 64x48 | HFG6448-08 | 18.46x18.1x1.8 | 15.42x11.66 | AIP31567A | 21 | White BL | |
| 64x64 | HFG6464-11 | 26.62x29.72x2.2 | 22.92x22.92 | ST7567A | 12 | White BL | |
| 128x32 | HFG12832-06 | 52x27.5x3.1 | 46x16 | UC1705 | 14 | White BL | |
| 128x32 | HFG12832-08 | 52x27.5x3.1 | 46x16 | UC1705 | 14 | White BL | |
| 128x64 | HSG12864-34 | 65x38.6x4.9 | 53.8x28.6 | ST7567 | 10 | Green BL | |
| 128x64 | HSG12864-35 | 77x48x2.8 | 73x39 | IST3040 | 30 | No BL | |
| 128x64 | HSG12864-58 | 106.2x52.1x10.5 | 65.4x38 | ST7565R | 16 | Green BL | |
| 128x64 | HSG12864-73 | 36.8x38.8x4.1 | 32x29 | ST7567 | 22 | Green BL | |
| 128x64 | HSG12864-101 | 77.4x52.4x6.5 | 70x40 | ST7565R-G | 30 | White BL | |
| 128x64 | HSG12864-128 | 79.05x39.5x8.04 | 53.6x28.6 | ST7567 | 10 | Green BL | |
| 128x64 | HSG12864-135 | 78x37.4x5.2 | 53.4x25.2 | ST7567 | 20 | Green BL | |
| 128x64 | HFG12864-142 | 31x22.5x1.7 | 29x16.35 | ST7567 | 12 | No BL | |
| 128x64 | HSG12864-148 | 101x59x10.5 | 65.4x38 | ST7565R | 9 | with PCB board | |
| 128x64 | HSG12864-159 | 41x33.1x3 | 36.2x22.5 | UC1701 | 12 | White BL | |
| 128x64 | HFG12864-204 | 42x31.6x3 | 38x24.3 | ST7567 | 20 | White BL | |
| 128x64 | HFG12864-211 | 26.7x19.26x1.8 | 22.94x11.46 | ST7567S | 30 | White BL | |
| 128x64 | HFG12864-268 | 71x48x5 | 66x38 | ST7565R | 20 | White BL | |
| 128x64 | HFG12864-338 | 77.4x52.4x6.5 | 70x40 | ST7565R | 28 | White BL | |
| 128x64 | HFG12864-415 | 43.1x27.46x1.7 | 39.5x20.24 | UC1701C | 12 | No BL | |
| 128x64 | HFG12864-469 | 56.6x38.6x5.1 | 53.6x28.6 | ST7567 | 10 | White BL | |
| 128x64 | HSG12864-510 | 77.4x52.4x6.5 | 66.54x33.26 | ST7565R | 28 | White BL | |
| 128x64 | HSG12864-580 | 79.05x39.5x8.04 | 53.6x28.6 | ST7567A | 11 | Green BL | |
| 128x64 | HFG12864-632 | 28.58x19.5x1.7 | 25.58x14.06 | ST7567S | 8 | No BL | |
| 128x64 | HFG12864-651 | 44.5x28.86x4.3 | 39.5x20.24 | ST7567A | 15 | White BL | |
| 128x64 | HFG12864-653 | 50.2x39.2x6 | 44x29 | ST7567A | 30 | White BL | |
| 128x64 | HFG12864-660 | 71.3x48.2x5.3 | 66.5x38.4 | ST7567 | 20 | White BL | |
| 128x64 | HFG12864-705 | 80x54x9.7 | 70.7x38.8 | ST7567 | 20 | White BL | |
| 128x64 | HFG12864-724 | 67x43.45x5.15 | 61x31.5 | ST7567 | 20 | White BL | |
| 128x64 | HFG12864-738 | 63.2x41.7x5.1 | 50x25 | ST7567S | 20 | White BL | |
| 128x64 | HFG12864-742 | 38x30x6.25 | 32x19.5 | ST7565R | 30 | White BL | |
| 128x64 | HSG12864-745 | 75.5x37.4x5.2 | 53.4x25.2 | ST7567 | 11 | Green BL | |
| 128x64 | HFG12864-746 | 45.9x28.9x2.7 | 43.9x22.9 | ST7567 | 12 | White BL | |
| 128x64 | HFG12864-758 | 31x22.5x2.7 | 29x16.35 | ST7567 | 12 | White BL | |
| 128x64 | HFG12864-784 | 71.3x48.2x5.3 | 66.5x38.4 | ST7567 | 20 | White BL | |
| 128x64 | HFG12864-854 | 74.0x41.7x6.1 | 50x25 | ST7567S | 18 | White BL | |
| 128x64 | HSG12864-952 | 58.6x40..6x5 | 53.6x28.6 | ST7567 | 10 | Green BL | |
| 128x64 | HFG12864-1008 | 77.4x52.4x6.5 | 70x40 | ST7565R | 28 | White BL | |
| 128x64 | HSG12864-1040 | 77.4x52.4x6.5 | 70x40 | ST7565R | 28 | White BL | |
| 128x64 | HFG12864-1219 | 62.4x45.9x6.3 | 53.5x35 | ST7567-G4 | 18 | White BL | |
| 128x64 | HFG12864-1270 | 30.18x21.4x2.9 | 26.58x14.86 | ST7567S | 14 | White BL | |
| 128x64 | HFG12864-1292 | 35.75x31.65x2.6 | 30.35x22.75 | ST7567S | 20 | White BL | |
| 128x64 | HFG12864-1737 | 26.7x19.26x1.8 | 22.94x12.06 | ST7567S | 12 | White BL | |
| 128x64 | HFG12864-1870 | 26.7x19.26x2 | 22.344x11.464 | AIP31567A | 12 | White BL | |
| 128x64 | HSG12864-1939 | 65x38.6x4.9 | 53..6x28.6 | ST7567A | 11 | Green BL | |
| 128x64 | HFG12864-1946 | 26.7x19.26x2 | 22.344x11.464 | AIP31567A | 12 | White BL | |
| 128x128 | HFG128128-10 | 49x55x2.8 | 46x44.5 | UC1617S | 12 | No BL | |
| 128x128 | HFG128128-23 | 32.67x36.39x1.95 | 28.67x28.67 | IST7920 | 14 | Round,White BL | |
| 132x32 | HSG13232-11 | 34.5x15x1.75 | 31.9x9.5 | ST7567 | 10 | No BL | |
| 132x32 | HFG13232-12 | 34.5x15x2 | 31.9x9.5 | ST7567 | 14 | No BL | |
| 132x52 | HFG13252-00 | 85.2x44.4x6.7 | 73x28 | ST7567 | 10 | White BL | |
| 132x58 | HFG13258-00 | 90x46x7.5 | 74x33 | ST7567 | 10 | White BL | |
| 160x48 | HFG16048-00 | 62.7x20.8x2.55 | 52.7x17 | UC1604C | 14 | White BL | |
| 160x160 | HFG160160-11 | 80x72.5x5 | 60x54.38 | UC1698U | 30 | White BL | |
| 192x64 | HSG19264-05 | 100x48x11.5 | 84x32 | IST3020 | 8 | with PCB board | |
| 192x64 | HFG19264-15 | 32.75x79.8x3.5 | 26x69.6 | UC1604C | 24 | White BL | |
| 192x96 | HFG19296-05 | 69.2x47.2x5.7 | 64x36 | ST75256 | 12 | White BL | |
| 240x120 | HFG240120-02 | 76.8x46.7x2.85 | 73.8x37.7 | UC1608 | 23 | White BL | |
| 240x120 | HFG240120-11 | 84x50x9 | 72x37 | UC1608 | 8 or 16 | with PCB board | |
| 240x160 | HSG240160-00 | 93x64.2x9.3 | 78.5x47.5 | ST7586S | 16 | with PCB board | |
| 240x160 | HFG240160-09 | 71x52x7 | 62x40.6 | ST7586S | 25 | White BL | |
| 240x128 | HFG240128-21 | 111.28x68.74x7.6 | 94.18x56.74 | UC1698UGAC | 28 | White BL | |
| 7 Segment | HTG8872-09 | 37x14.8x2.8 | 34x5.5 | ML1001-2U | 7 | No BL |
← Back to Products

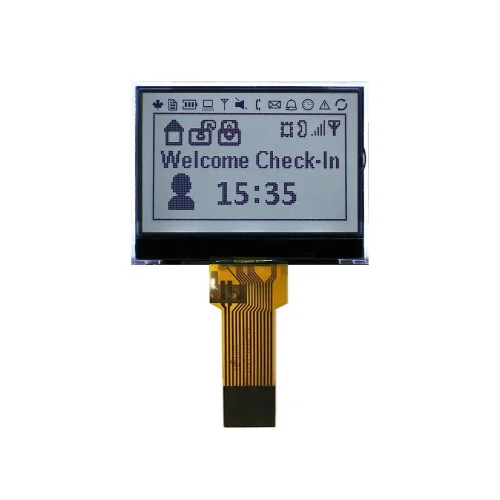

COG monochrome LCD modules
