TN Glass LCD Display Without Driver
Customized TN LCD Display are widely use on low power/cost applications. Basically, driverless models are prefered by engineer. They are used with microcontrollers with embedded LCD driver or with external RAM Mapping LCD driver ICs. They consist of two glass layers with a transparent conductive polymer coating on the inner surface, polarization filters on the outermost surface and a metal pin terminal.
- Low cost
- Low Power Consumption
- Customizable Size
- Custom icon and segment layout
- Narrow View Angle
- Slow Response Time

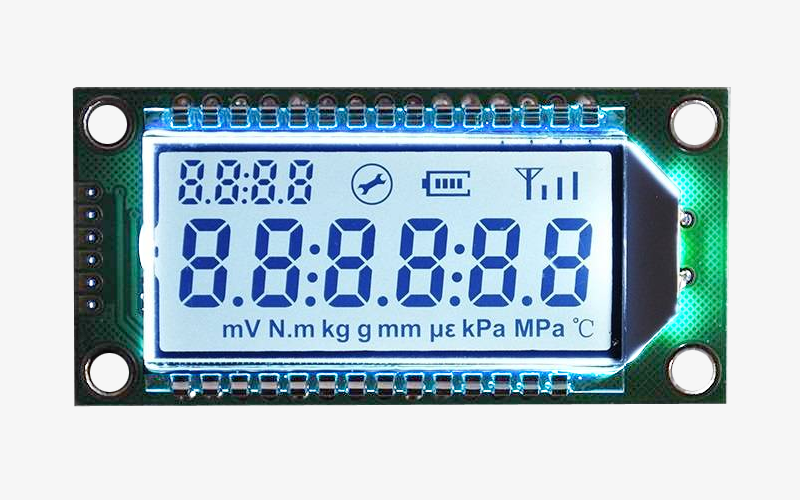

TN Glass LCD Display COB Board
Customized TN LCD Display with COB Board are widely use on low power/cost applications. They can be drive directly by microcontrollers via serial port. They consist of two glass layers with a transparent conductive polymer coating on the inner surface, polarization filters on the outermost surface and a metal pin terminal. There is a LED Backlight behind LCD and a PCB with driver IC.
- Low cost
- Low Power Consumption
- Easy R&D
- Customizable Size
- Custom icon and segment layout
- Narrow View Angle
- Slow Response Time

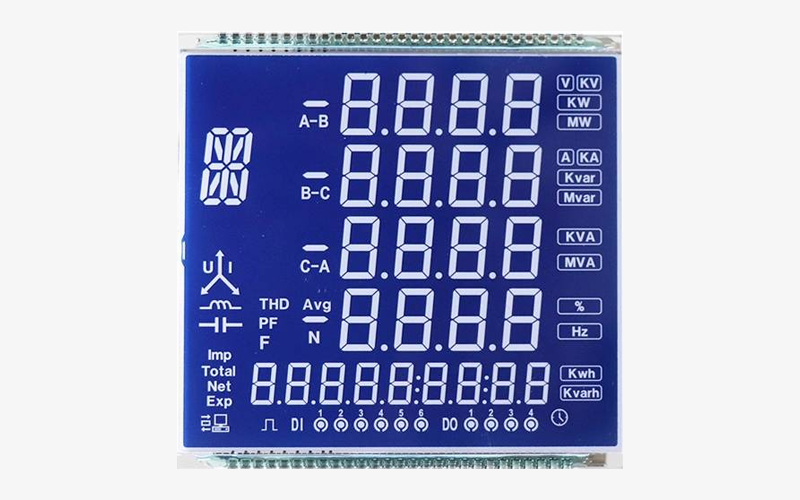

STN Negative Blue Glass LCD
Customized STN Negative Blue/White LCD Displays widely used most of electronic appliances. This LCD contains White LED Backlight and image can't be shown on LCD surface without backlight. Because this LCD in Negative mode and contains transmissive filter. STN negative B/W LCD can't reflect ambient light.
- Low cost
- Low Power Consumption
- Easy R&D
- Customizable Size
- Custom icon and segment layout
- Wider View Angle than TN
- Faster Response Time than TN

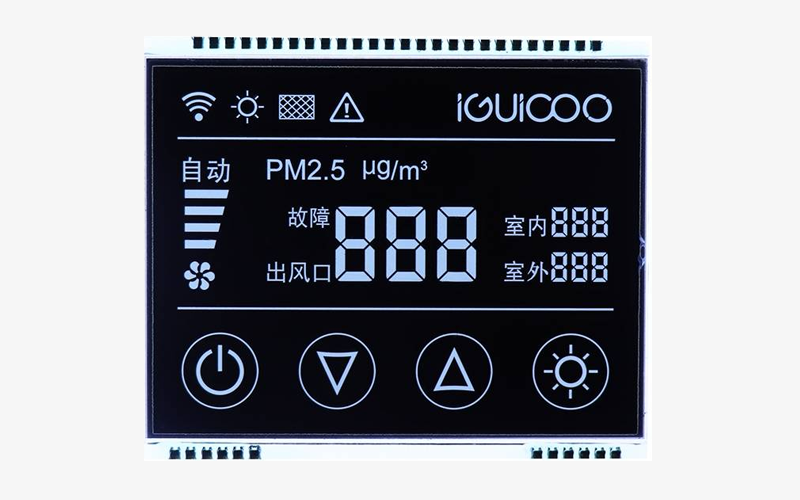

VA-TN Negative Black White LCD Display
Customized VATN Negative Black & White LCD Displays are a lot of advantages. This LCD contains White LED Backlight and image can't be shown on LCD surface without backlight. Because this LCD in Negative mode and contains transmissive filter. STN negative Black & White LCD can't reflect ambient light.
- Wider View Angle than all other type of LCDs
- High Contrast
- Easy R&D
- Customizable Size
- Custom icon and segment layout

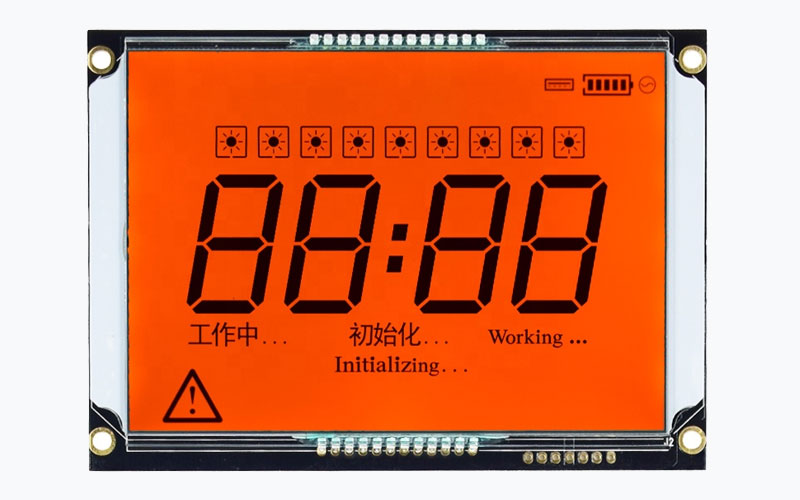

FSTN LCD Displays
Special Design FSTN LCD Displays have higher viewing angles and higher contrast than standard TN, STN displays. These indicators can have negative or positive polarization. Structurally, the only difference from standard TN LCDs is the additional filters applied to the LCD surface.
- High Contrast
- Easy R&D
- Customizable Size
- Custom icon and segment layout

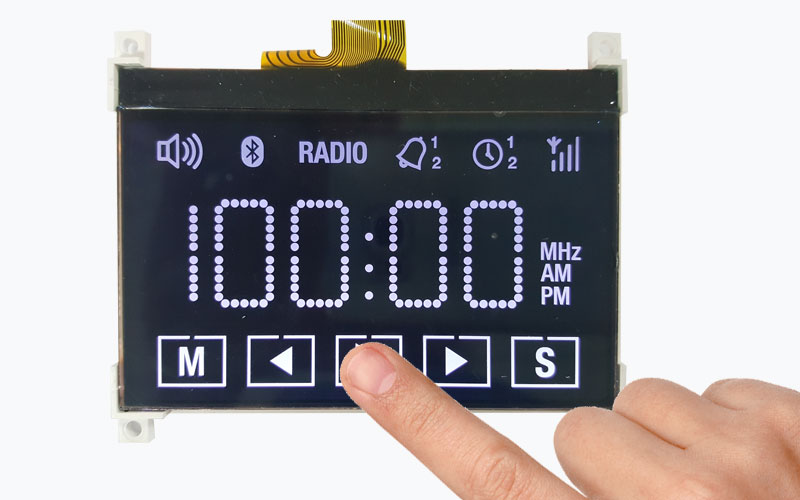

Incell Touch LCD Displays
Built-in Touch is a touch feature added to the standard TN LCD glass with a special driver integrated without the need for an additional capacitive layer. The touch rings added to the glass surface provide a practical and economical solution together with the driver integrated circuit specially designed for this job.
- 16 point capacitive touch feature
- I2C Bus Interface Serial Communication
- 4BP * 40SEG structure (160 elements)
- 400Hz max. Frame Freq.
- 40x4Bit RAM Data Storage
Transparent LCD Showcase
Transparent LCD stands are practically promotional equipment consisting of a 3D backlight chamber. This stylish stand, where you can give interactive information about the physical product in the background, is used in many business areas. Such as, museum, high-end devices, luxury accessories and watches, nutritions, drinks, costumes etc... Your trustworthy turnkey OEM/ODM supplier in CHINA.
- Design Flexibility
- Stylish
- Attention Grabbing
- Futuristic
- Interactive
